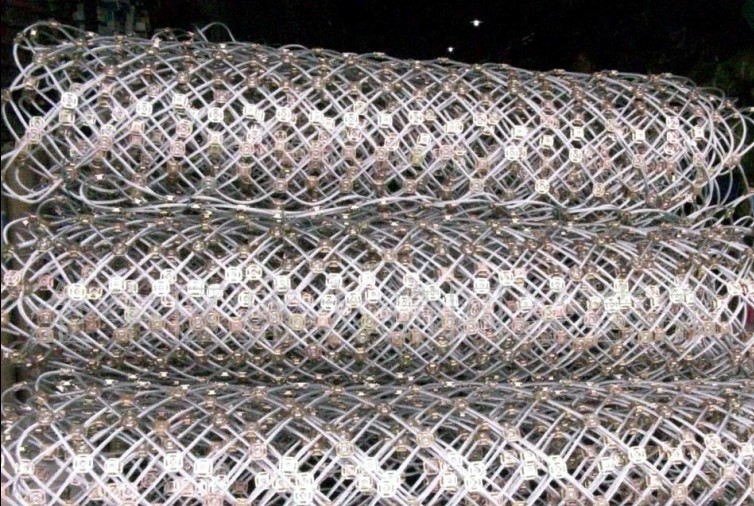

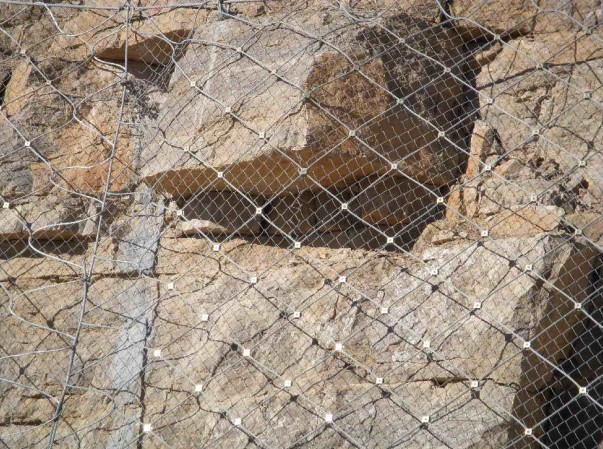

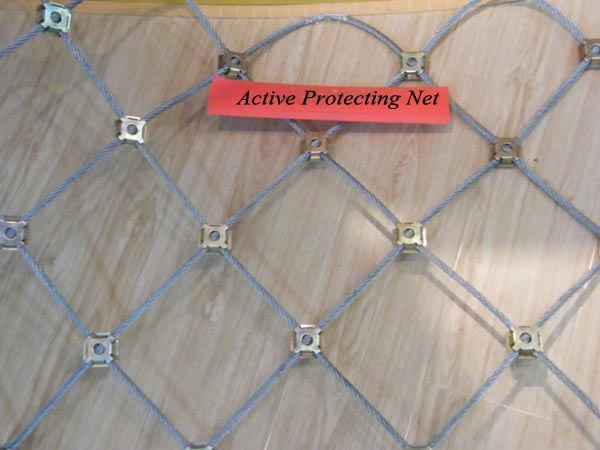

GPS2 Active Protecting Net
2012-05-22 15:55:48 Source:Hebei BangDa Metal Products Co.,Ltd Browse:3151
 |
|
Material:Galvanized Iron Wire,Low-Carbon Iron wire
Hole Shape:Square
Wire Gauge:4mm-8mm
Aperture:60mm-150mm
Finish:galvanized before PVC coated |
|
1.Material: low carbon steel wire, stainless steel wire, and PVC coated wire
2.Wire diameter:BWG18#-7#
3.Width of the roll:0.5m-5.0m
4.Length of the roll:0.50m-100m(or more)
|
Opening(mm) |
Wire diameter
(metal wire)(mm) |
Wire diameter(PVC coate)
/inner/outside(mm) |
strands |
|
60*80 |
Ø2.0-2.8 |
Ø2.0/3.0-2.5/3.5 |
3 |
|
80*100 |
Ø2.0-3.2 |
Ø2.0/3.0-2.8/3.8 |
3 |
|
80*120 |
Ø2.0-3.2 |
Ø2.0/3.0-2.8/3.8 |
3 |
|
100*120 |
Ø2.0-3.4 |
Ø2.0/3.0-2.8/3.8 |
3 |
|
100*150 |
Ø2.0-3.4 |
Ø2.0/3.0-2.8/3.8 |
3 |
|
120*150 |
Ø2.0-4.0 |
Ø2.0/3.0-3.0/4.0 |
3 |
| |
|
| |
|
|
