Material:Galvanized Iron Wire
Hole Shape: Hexagonal
Wire Gauge:1.8-4.5mm
Aperture:60*80MM,80*100MM,100*120MM
Application:Gabions |

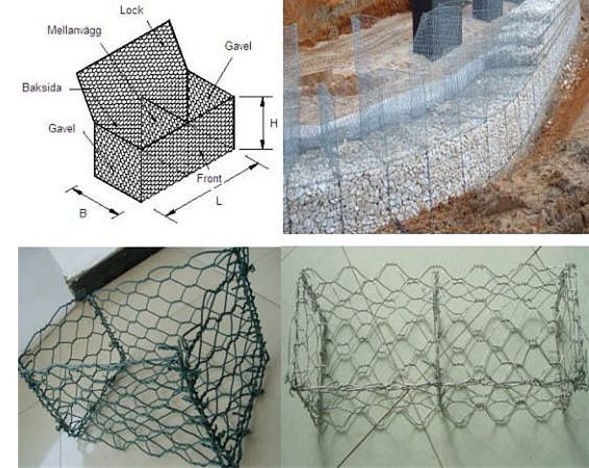

Gabion is an element in the form of blocks made of wire mesh nettings of twisted hexagonal opening or welded square or rectangular openings, which is filled with natural stone for river, hill protection or construction.
rock filled gabion box uses:

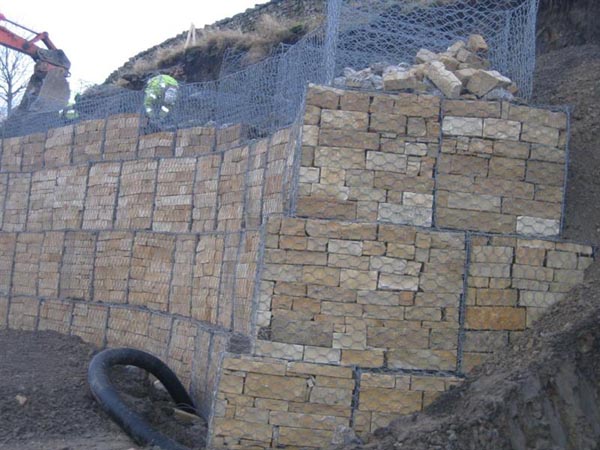

Strengthen the slopes
1.Gabion offers a unique way to protect against erosion and landslides.

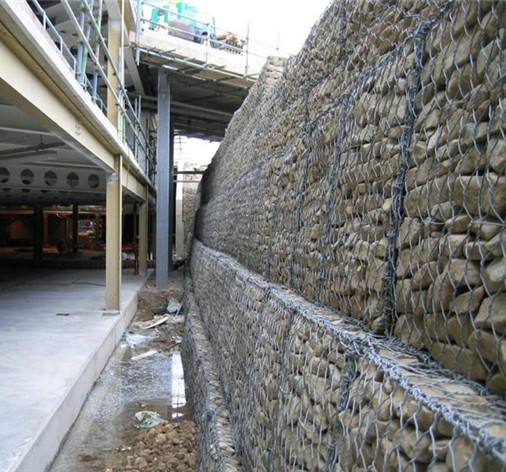

2.Gabion retaining walls are used for their flexibility, robustness and high drainage capacity. The work of 3.Gabion are considered to be a perfect solution in demanding geotechnical conditions, because you can easily assemble.
rock filled gabion boxRoads and railways
1.Gabion is used where it is necessary to stabilize the road or rail. It is used primarily for the expansion or construction of roads on the slopes. Furthermore, in the construction of railway embankments, and so on.
2.Another option is the use of Gabion noise barriers, where the effect is compared with soundproof concrete improved by selecting suitable plants.
|
Opening（mm） |
Wire diameter before coated （mm） |
Wire Diameter after Coate(mm) |
Strands |
|
60X80 |
φ2.0-2.8 |
φ2.0/3.0-2.5/3.5 |
3 |
|
80X100 |
φ2.0-3.2 |
φ2.0/3.0-2.8/3.8 |
3 |
|
80X120 |
φ2.0-3.2 |
φ2.0/3.0-2.8/3.8 |
3 |
|
100X120 |
φ2.0-3.4 |
φ2.0/3.0-2.8/3.8 |
3 |
|
100X150 |
φ2.0-3.4 |
φ2.0/3.0-2.8/3.8 |
3 |
|
120X150 |
φ2.0-4.0 |
φ2.0/3.0-3.0/4.0 |
3 |
The production's material and size can be producted as the customoer's requirement.
