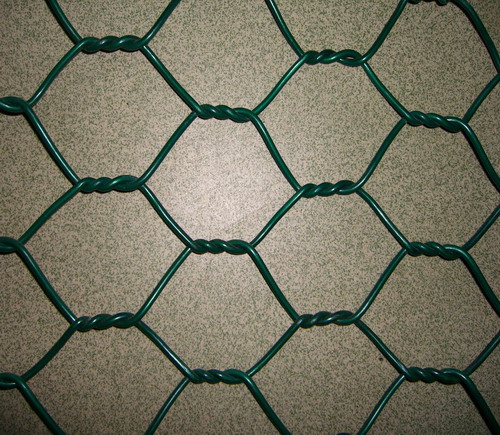

PVC Hexagonal Wire Mesh

2012-05-21 11:07:10 Source:Hebei BangDa Metal Products Co.,Ltd Browse:1932



Material:High quaility low carbon steel wire

Hole Shape:Hexagonal

Wire Gauge:2.0mm-4.0mm

PVC coating:0.5mm-1.5mm

Aperture: 60mm*80mm;80mm*100mm;100mm*120mm;120mm*150mm

Color:Green,Grey or as your design



Gabion Fence are wire containers made of  hexagonal wire nettings.Wire diameter varies with the hexagonal nettings. For hexagonal wire netting with no pvc coating, the wire diameter ranges from 2.0mm to 4.0mm. For those PVC coated hexagonal wire netting, the outside diameter ranges from 3.0mm to 4.0mm. The wire of the outside frame edge is one wire gauge thicker than the wire used for hexagonal wire netting.

1.Characteristic:

1) economic. Just put the stone into the gabion and seal
2) Easily construct, no special technology needed
3) Strong capacity of withstand nature destroy, rust-resistance and atrocious weather resistance
4) Affording Large scale distortion, but never be defeated
5) The slit between the mesh and stone is good for the growth, which can be the part of the environment around
6) Excellent Penetrability, which can prevent from the whist by liquid
7) Saving the transport costs. Which can fold while loading and transport, then assemble

2.applications:
Control and guide of water or flood /Flood bank or guiding bank /Preventing of rock breaking
Water and soil protection/Bridge protection

Specifications:

Openingmm

Wire diameter before coated mm

Wire Diameter (PVC Coate)

Strands

60X80

φ2.0-2.8

φ2.0/3.0-2.5/3.5

3

80X100

φ2.0-3.2

φ2.0/3.0-2.8/3.8

3

80X120

φ2.0-3.2

φ2.0/3.0-2.8/3.8

3

100X120

φ2.0-3.4

φ2.0/3.0-2.8/3.8

3

100X150

φ2.0-3.4

φ2.0/3.0-2.8/3.8

3

120X150

φ2.0-4.0

φ2.0/3.0-3.0/4.0

3

The production's material and size can be producted as the customoer's requirement.
